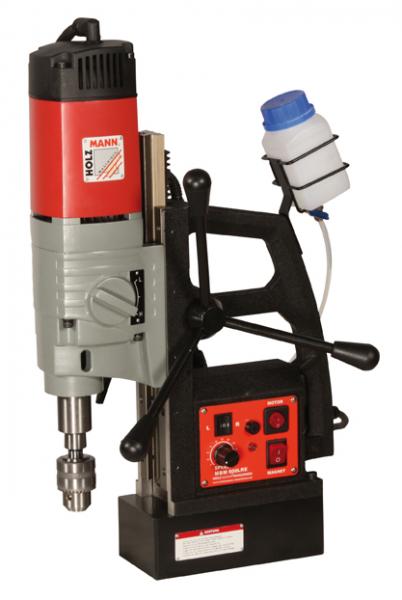

MBM 600LRE magnetic drill

»» For drilling core & threaded holes.

»» Ideal for handling huge bulky steel workpieces - where drill press and electric hand drills are inadequate.

»» Offers high mobilitity for working with big workpieces.

»» Also for vertical drills - convenient and small,can reduce work force and improve the machining accuracy and effienciency

»» By activating the electromagnet the MBM 600LRE can be mounted on every steel part and in any position. No slipping!

»» Also suitable for overhead work - the magnet provide the necessary security.

»» Widely used in the building, bridge building,and ship building industries usw.

»» The MBM 600LRE offers verious functions - forward reversal, adjustable velocity, speed regulation and tapping function.

included in delivery:

arbor MT3 B16, drill chuck, wedge, safety strap and collant tank, transport box

Technical Data

hole drilling max. Ø 60mm

hole drilling max. drill depth 50mm

twist drilling max. Ø 23mm

twist drilling max. drill depth 210mm

max. tapping diameter M18

countersunk drilling max. Ø 32mm

magnetic adhesion 14800N

dimensions magnetic base 205x107x68mm

distance quick release tool holder to base max. 330mm

arbor welden shank MK3/MT3

motor power 2080W

voltage 230V

net weight 26kg

gross weight ca. 31kg
